Pamatplates
BD124541

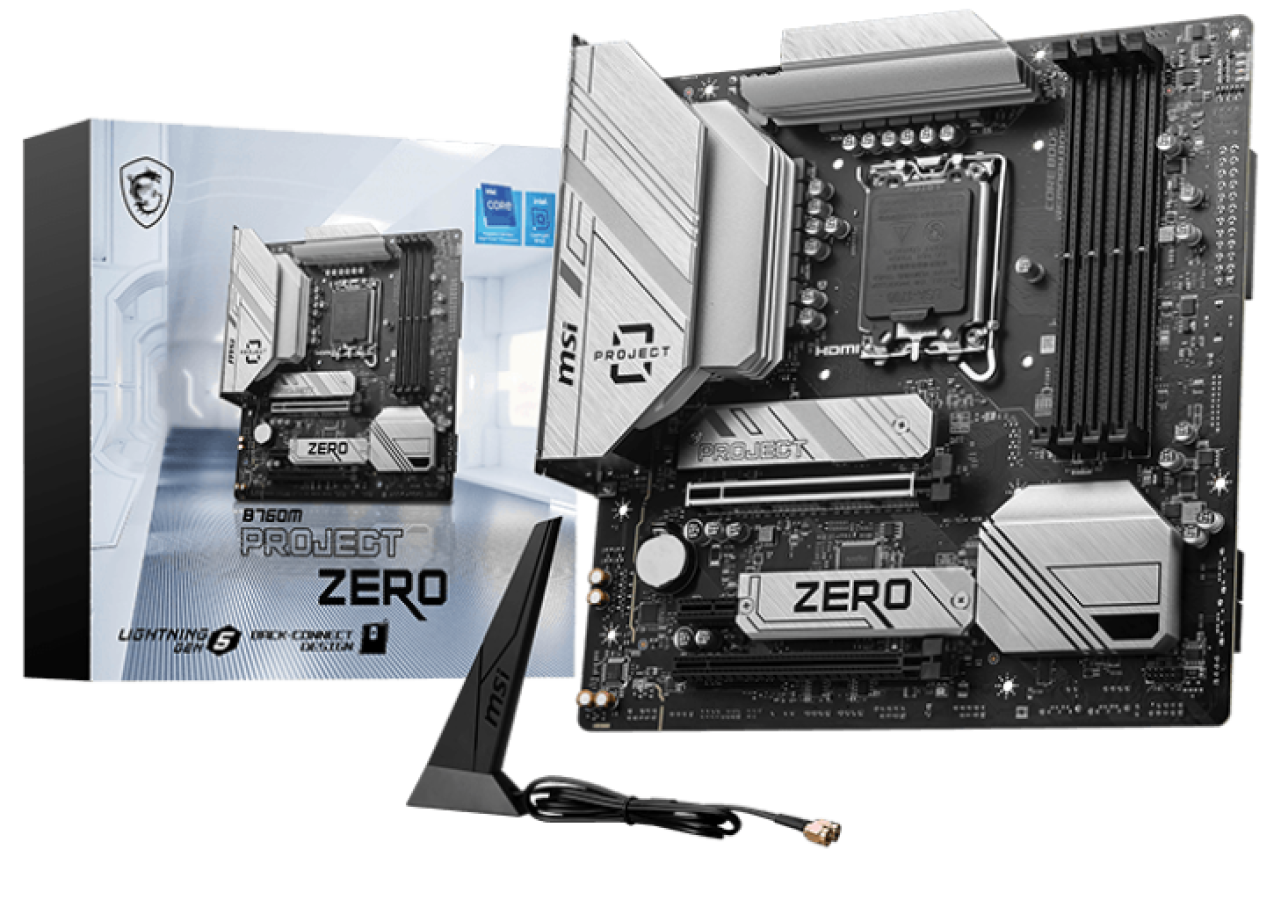

Pamatplate MSI B760M PROJECT ZERO
243.95 €
Ikmēneša maksājums
22.60 €
Kopējā maksājamā summa
271.20 €
Kopējā pārmaksa
27.25 €
GPL:21.96%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:1.20€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
Intel B760
Plates formfaktors
Micro ATX
Procesora ražotājs
Intel
Ligzda
LGA 1700
DDR tips
DDR5
Atmiņas sloti
4
M.2 Pieslēgumi
2
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel B760
Plates formfaktors
Micro ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1700
Procesoru tipi/arhitektūras
14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR5
DDR ātrums
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Atmiņas sloti
4
Max atmiņas apjoms
256 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
LAN
Realtek 2.5Gbps LAN
WiFi
Ir
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
2
Iekšējie pieslēgumi
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Ārējie pieslēgumi
USB 2.0
DisplayPort 1.4
USB 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 20Gbps Type-C
Optical S/PDIF OUT
GARANTIJA
Garantija
2 gadi
