Pamatplates
BD120955

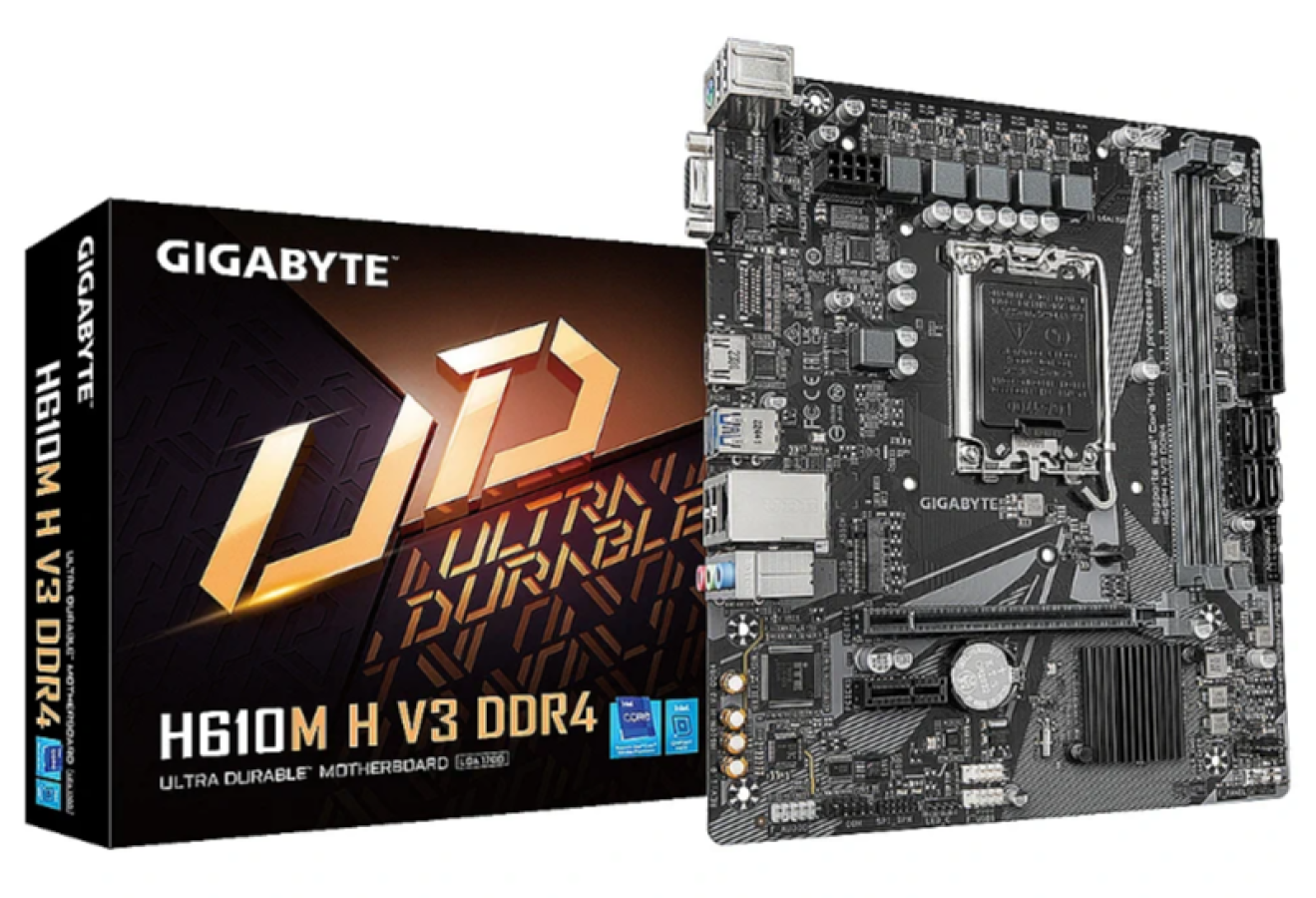

Pamatplate Gigabyte H610M H V3 DDR4
63.95 €
Preces galvenie parametri
Mikroshēmu tips | chipset
Intel H610
Plates formfaktors
Micro ATX
Procesora ražotājs
Intel
Ligzda
LGA 1700
DDR tips
DDR4
Atmiņas sloti
2
M.2 Pieslēgumi
1
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel H610
Plates formfaktors
Micro ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1700
Procesoru tipi/arhitektūras
Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR4
DDR ātrums
3200/3000/2933/2666/2400/2133
Atmiņas sloti
2
Max atmiņas apjoms
64 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
LAN
WiFi
Nav
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
1
Iekšējie pieslēgumi
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Ārējie pieslēgumi
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
GARANTIJA
Garantija
2 gadi
