Pamatplates
BD100562

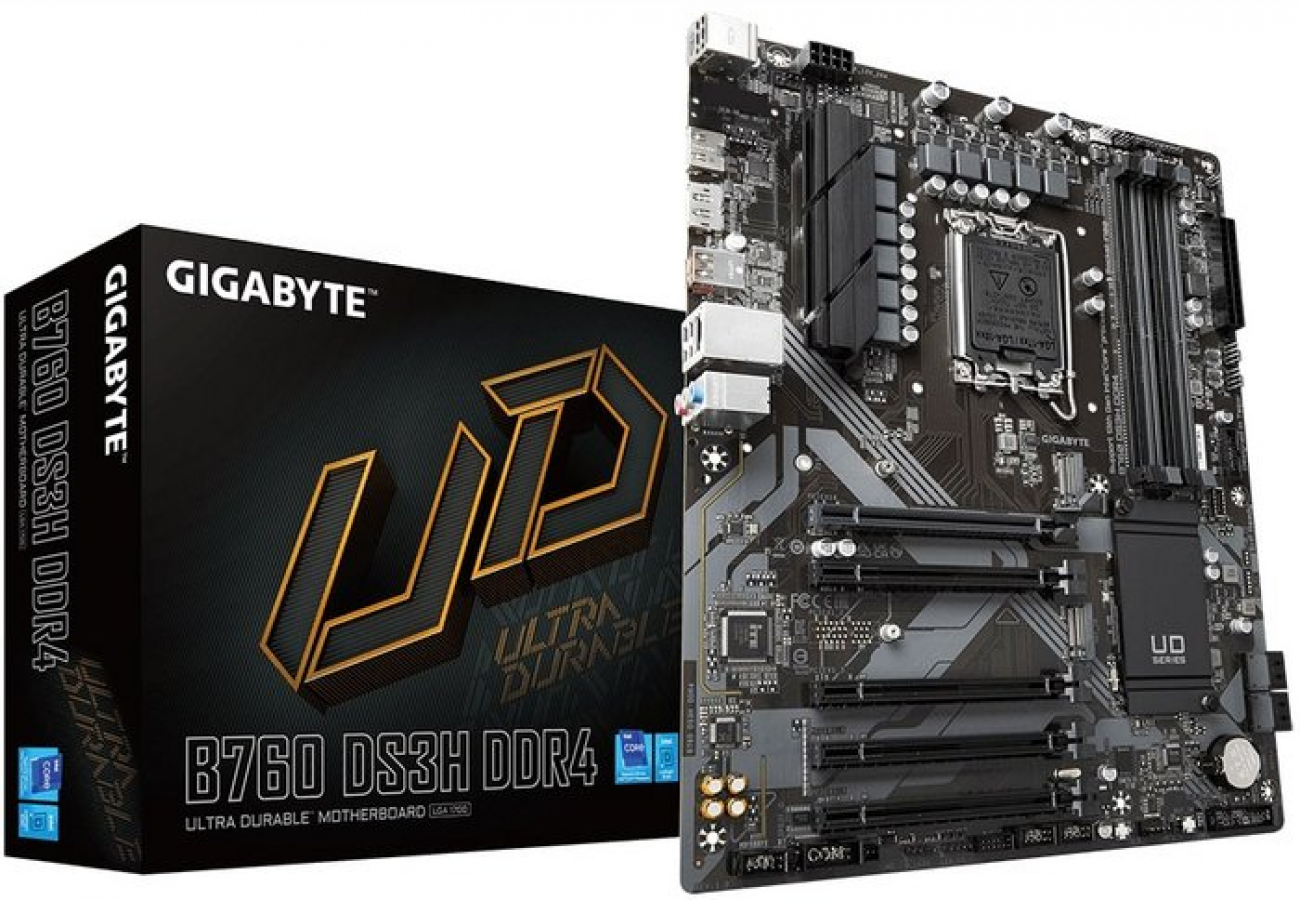

Pamatplate Gigabyte B760 DS3H DDR4
119.95 €
Ikmēneša maksājums
11.11 €
Kopējā maksājamā summa
133.32 €
Kopējā pārmaksa
13.37 €
GPL:21.91%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.59€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
Intel B760
Plates formfaktors
ATX
Procesora ražotājs
Intel
Ligzda
LGA 1700
DDR tips
DDR4
Atmiņas sloti
4
M.2 Pieslēgumi
2
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel B760
Plates formfaktors
ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1700
Procesoru tipi/arhitektūras
13th Intel Pentium Processors, 13th Intel Celeron Processors, 13th Intel Core Processors, 12th Gen Intel Celeron Processors, 12th Gen Intel Pentium Gold Processors, 12th Gen Intel Core Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR4
DDR ātrums
5133, 5333, 4933, 5000, 4700, 4800, 3666, 4500, 4300, 4600, 3200, 3333, 3800, 3600, 3400, 3000, 4000, 3866, 3733, 3466, 3300, 2666, 2400, 2133, 2933, 4400, 4266, 4133
Atmiņas sloti
4
Max atmiņas apjoms
128 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
WiFi
Nav
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
2
Iekšējie pieslēgumi
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Ārējie pieslēgumi
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
GARANTIJA
Garantija
2 gadi
