Pamatplates
BD100587

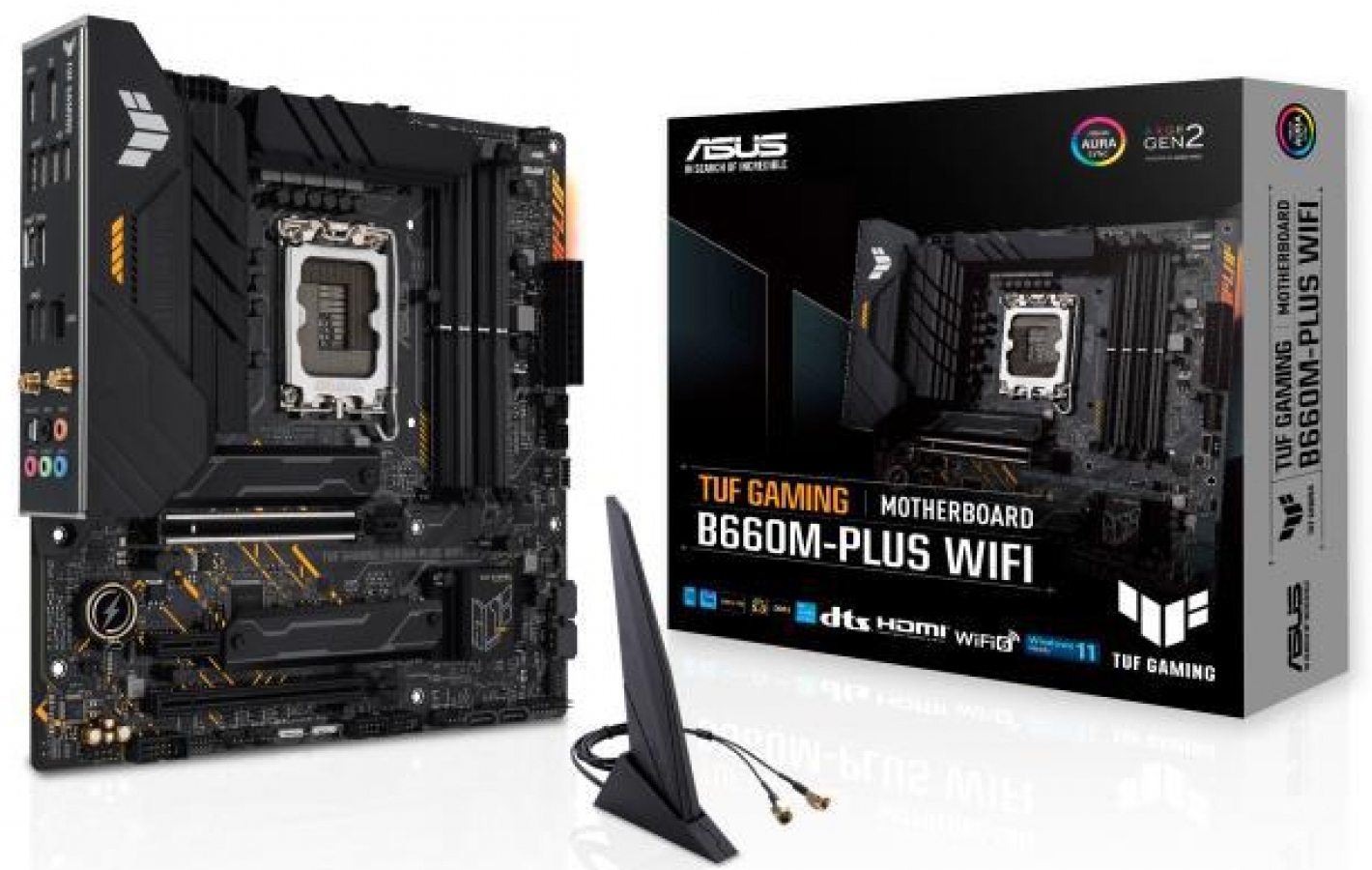

Pamatplate Asus TUF GAMING B660M-PLUS WIFI
205.95 €
Ikmēneša maksājums
19.08 €
Kopējā maksājamā summa
228.96 €
Kopējā pārmaksa
23.01 €
GPL:21.96%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:1.01€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
Intel B660
Plates formfaktors
Micro ATX
Procesora ražotājs
Intel
Ligzda
LGA 1700
DDR tips
DDR5
Atmiņas sloti
4
M.2 Pieslēgumi
2
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel B660
Plates formfaktors
Micro ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1700
Procesoru tipi/arhitektūras
12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR5
DDR ātrums
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800
Atmiņas sloti
4
Max atmiņas apjoms
128 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
LAN
Realtek 2.5Gb Ethernet
TUF LANGuard
WiFi
Ir
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
2
Iekšējie pieslēgumi
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Ārējie pieslēgumi
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
GARANTIJA
Garantija
2 gadi
