Pamatplates
BD122460

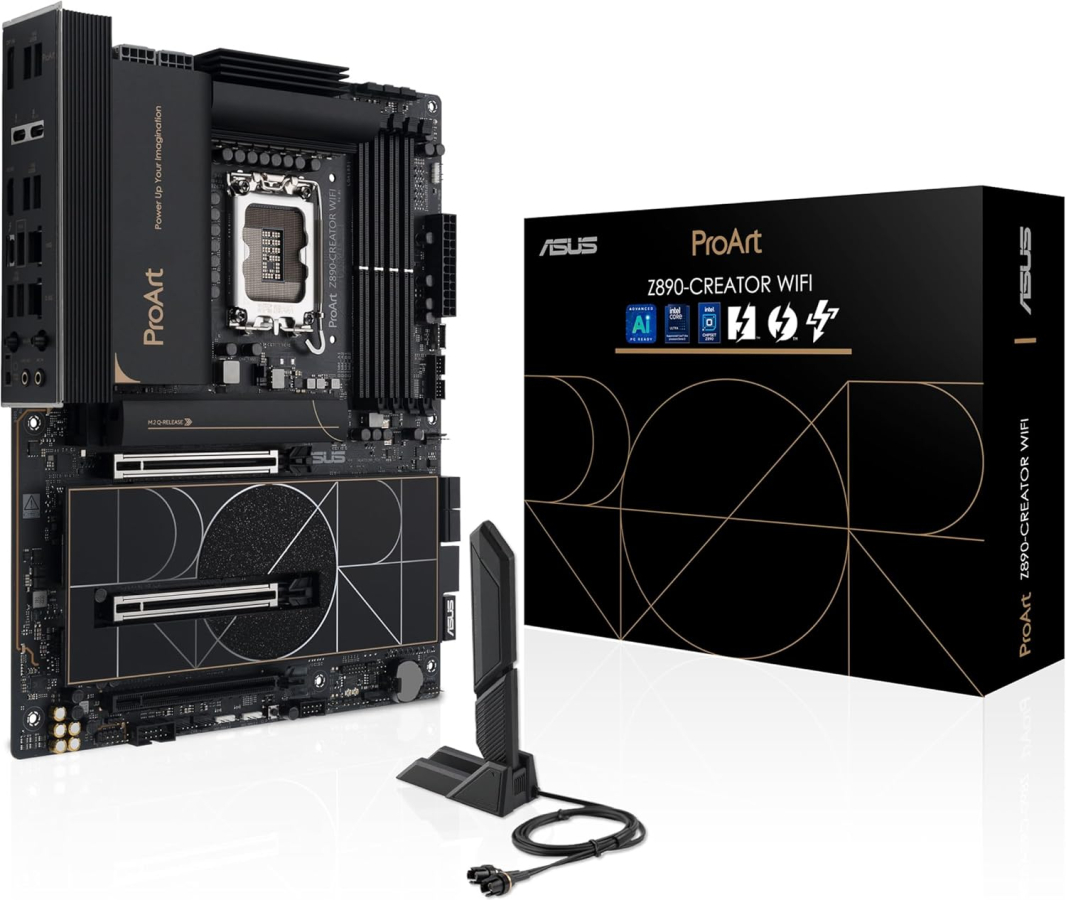

Pamatplate Asus PROART Z890-CREATOR WIFI
530.95 €
Ikmēneša maksājums
49.19 €
Kopējā maksājamā summa
590.28 €
Kopējā pārmaksa
59.33 €
GPL:21.97%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:2.60€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
Intel Z890
Plates formfaktors
ATX
Procesora ražotājs
Intel
Ligzda
LGA 1851
DDR tips
DDR5
Atmiņas sloti
4
M.2 Pieslēgumi
4
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel Z890
Plates formfaktors
ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1851
Procesoru tipi/arhitektūras
Intel Core Ultra Processors (Series 2)
OPERATĪVĀ ATMIŅA
DDR tips
DDR5
DDR ātrums
9066+MT/s (OC)
Atmiņas sloti
4
Max atmiņas apjoms
192GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*Audio Features
- Gold-plated audio jacks
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
WiFi
Ir
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
4
Iekšējie pieslēgumi
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over voltage jumper
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Ārējie pieslēgumi
2 x Thunderbolt™ 5 USB Type-C® ports
1 x Thunderbolt™ 4 USB Type-C® port
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI™ port
1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack™ button
GARANTIJA
Garantija
2 gadi
