Pamatplates
BD126909

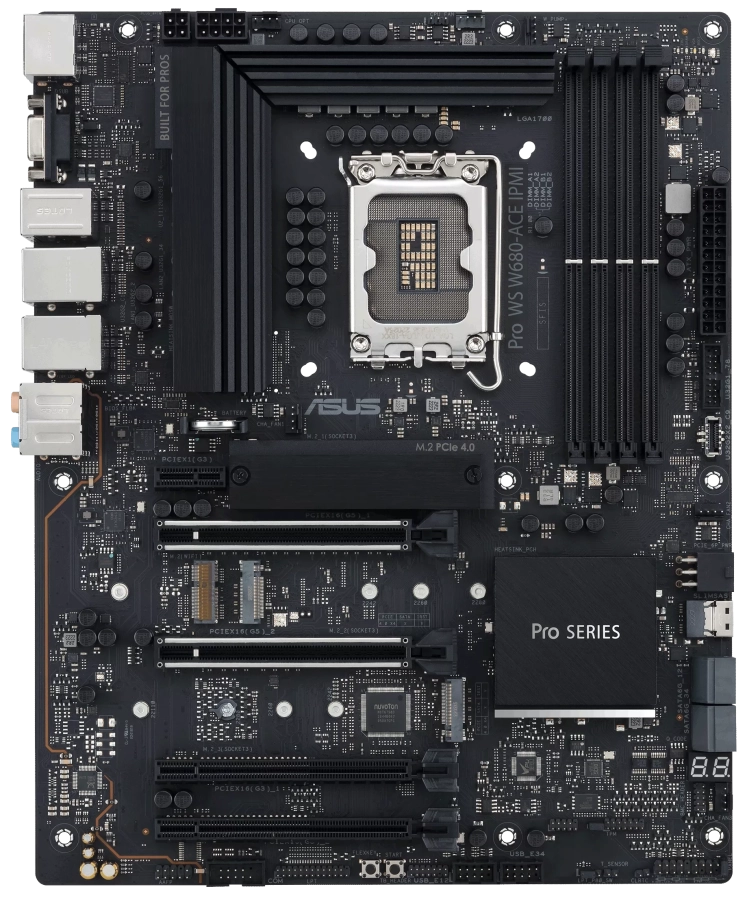

Pamatplate Asus Pro WS W680-ACE IPMI
637.95 €
Ikmēneša maksājums
59.10 €
Kopējā maksājamā summa
709.20 €
Kopējā pārmaksa
71.25 €
GPL:21.95%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:3.13€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
Intel W680
Plates formfaktors
ATX
Procesora ražotājs
Intel
Ligzda
LGA 1700
DDR tips
DDR5
Atmiņas sloti
4
M.2 Pieslēgumi
3
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel W680
Plates formfaktors
ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1700
Procesoru tipi/arhitektūras
Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR5
DDR ātrums
ECC and Non-ECC Un-buffered Memory
OptiMem II
Atmiņas sloti
4
Max atmiņas apjoms
192GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
LAN
2 x Intel® 2.5Gb Ethernet
ASUS LANGuard
WiFi
Nav
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
3
Iekšējie pieslēgumi
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin W_PUMP+ header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x LPT header
1 x T-sensor
1 x Clear CMOS header
1 x COM Port header
1 x BMC Header
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x Flexkey button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x M.2 slot (Key E)
1 x LPT_P80 Switch
1 x Thunderbolt™ header
Ārējie pieslēgumi
2 x USB 3.2 Gen 2 ports (1 x Type-A,
1 x Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x VGA port
2 x Intel® 2.5Gb Ethernet ports
5 x Audio jacks
1 x BIOS FlashbackTM button
GARANTIJA
Garantija
2 gadi
