Pamatplates
BD125879

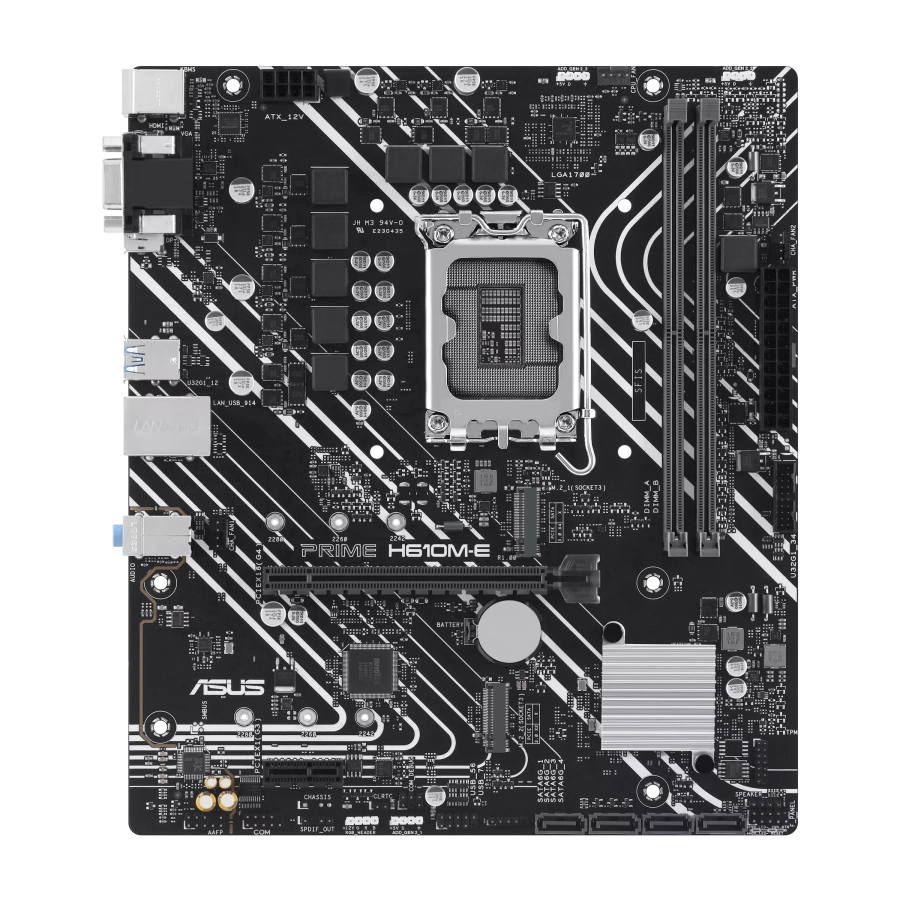

Pamatplate ASUS Prime H610M-E-CSM
128.95 €
Ikmēneša maksājums
11.94 €
Kopējā maksājamā summa
143.28 €
Kopējā pārmaksa
14.33 €
GPL:21.84%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.63€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
Intel H610
Plates formfaktors
Micro ATX
Procesora ražotājs
Intel
Ligzda
LGA 1700
DDR tips
DDR5
Atmiņas sloti
2
M.2 Pieslēgumi
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel H610
Plates formfaktors
Micro ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1700
Procesoru tipi/arhitektūras
for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
OPERATĪVĀ ATMIŅA
DDR tips
DDR5
DDR ātrums
DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Atmiņas sloti
2
Max atmiņas apjoms
96GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
1 x Realtek 1Gb Ethernet
WiFi
Nav
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
Iekšējie pieslēgumi
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
1 x Aura RGB header
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Ārējie pieslēgumi
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
GARANTIJA
Garantija
2 gadi
