Pamatplates
BD119680

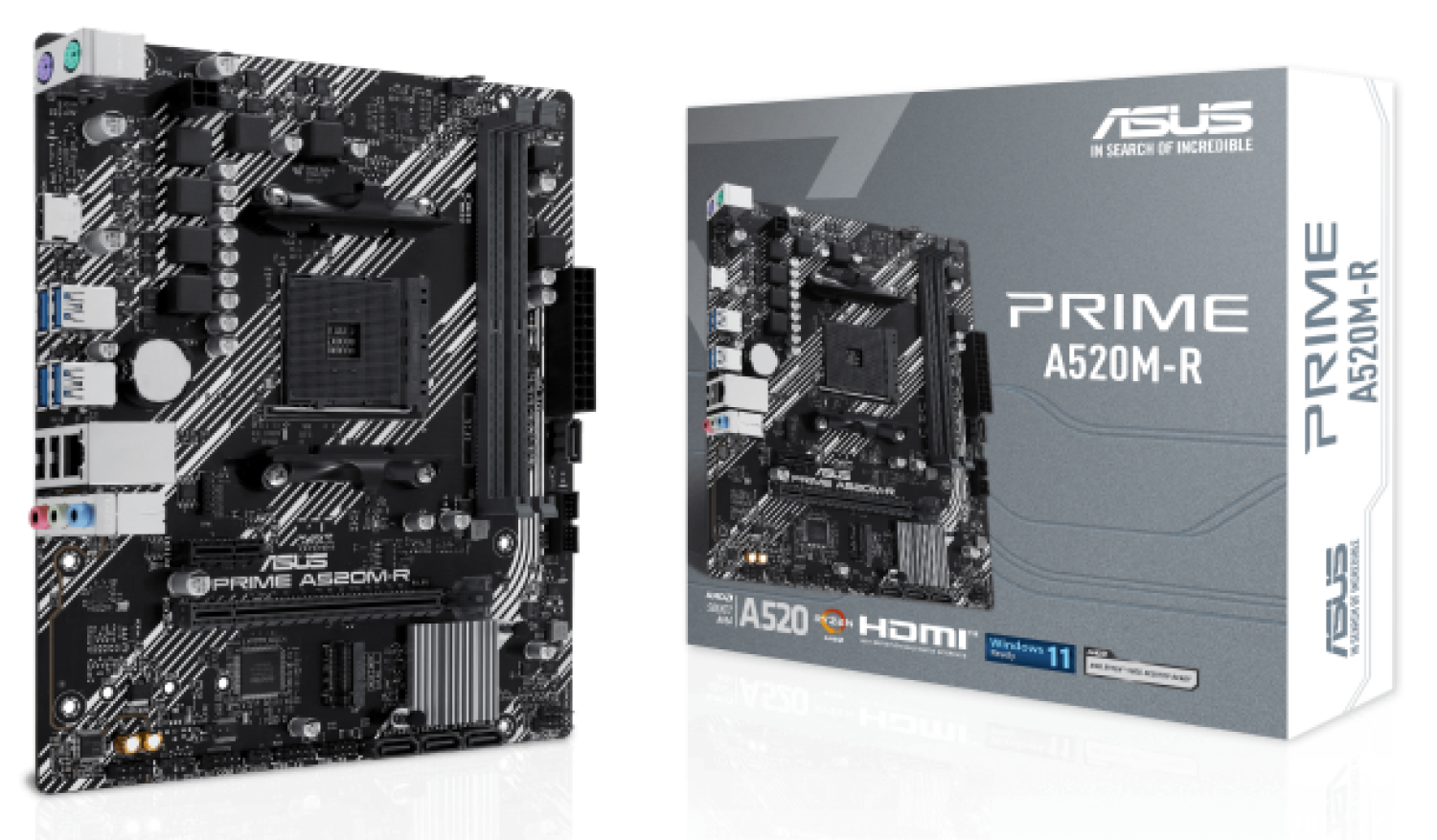

Pamatplate ASUS PRIME A520M-R
54.95 €
Preces galvenie parametri
Mikroshēmu tips | chipset
AMD A520
Plates formfaktors
Micro ATX
Procesora ražotājs
AMD
Ligzda
AM4
DDR tips
DDR4
Atmiņas sloti
2
M.2 Pieslēgumi
1
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
AMD A520
Plates formfaktors
Micro ATX
PROCESORS
Procesora ražotājs
AMD
Ligzda
AM4
Procesoru tipi/arhitektūras
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR4
DDR ātrums
5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133
Atmiņas sloti
2
Max atmiņas apjoms
64 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
Realtek 1Gb Ethernet
WiFi
Nav
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
1
Iekšējie pieslēgumi
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Ārējie pieslēgumi
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
GARANTIJA
Garantija
2 gadi
