Pamatplates
BD126164

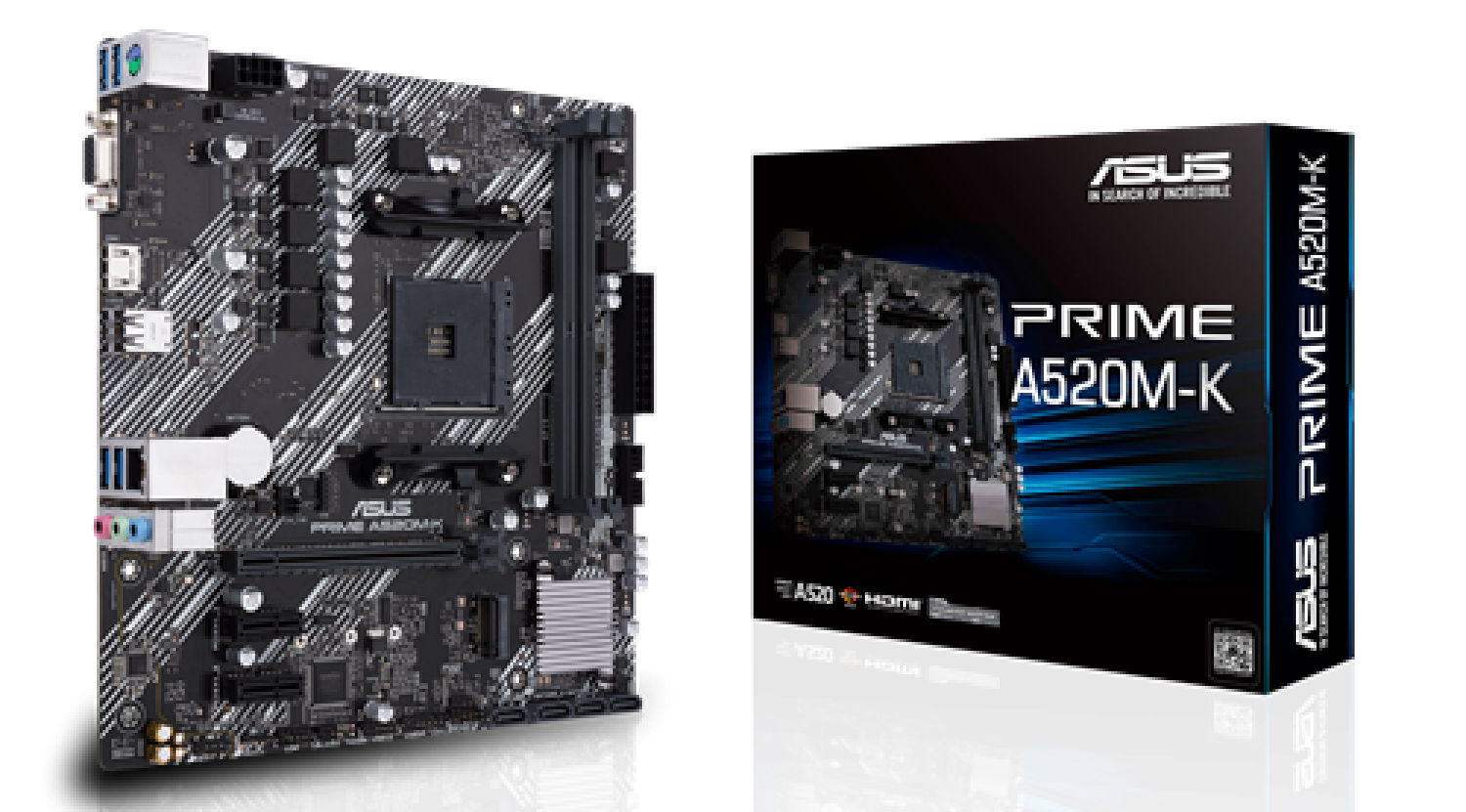

Pamatplate ASUS PRIME A520M-K
61.95 €
Preces galvenie parametri
Mikroshēmu tips | chipset
AMD A520
Plates formfaktors
Micro ATX
Procesora ražotājs
AMD
Ligzda
AM4
DDR tips
DDR4
Atmiņas sloti
2
M.2 Pieslēgumi
1
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
AMD A520
Plates formfaktors
Micro ATX
PROCESORS
Procesora ražotājs
AMD
Ligzda
AM4
Procesoru tipi/arhitektūras
AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR4
DDR ātrums
DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Atmiņas sloti
2
Max atmiņas apjoms
64 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.,- Audio Shielding,- Dedicated audio PCB layers
LAN
Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
WiFi
Nav
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
1
Iekšējie pieslēgumi
1 x SPI TPM header,1 x 8-pin EATX 12V Power connectors,1 x Speaker connector,1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x System panel connector,1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),4 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x Chassis Fan connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s)
Ārējie pieslēgumi
4 x USB 3.2 Gen 1 (blue) Type-A,2 x USB 2.0,3 x Audio jack(s),1 x PS/2 keyboard/mouse combo port(s),1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s)
GARANTIJA
Garantija
2 gadi
