Pamatplates
BD114123

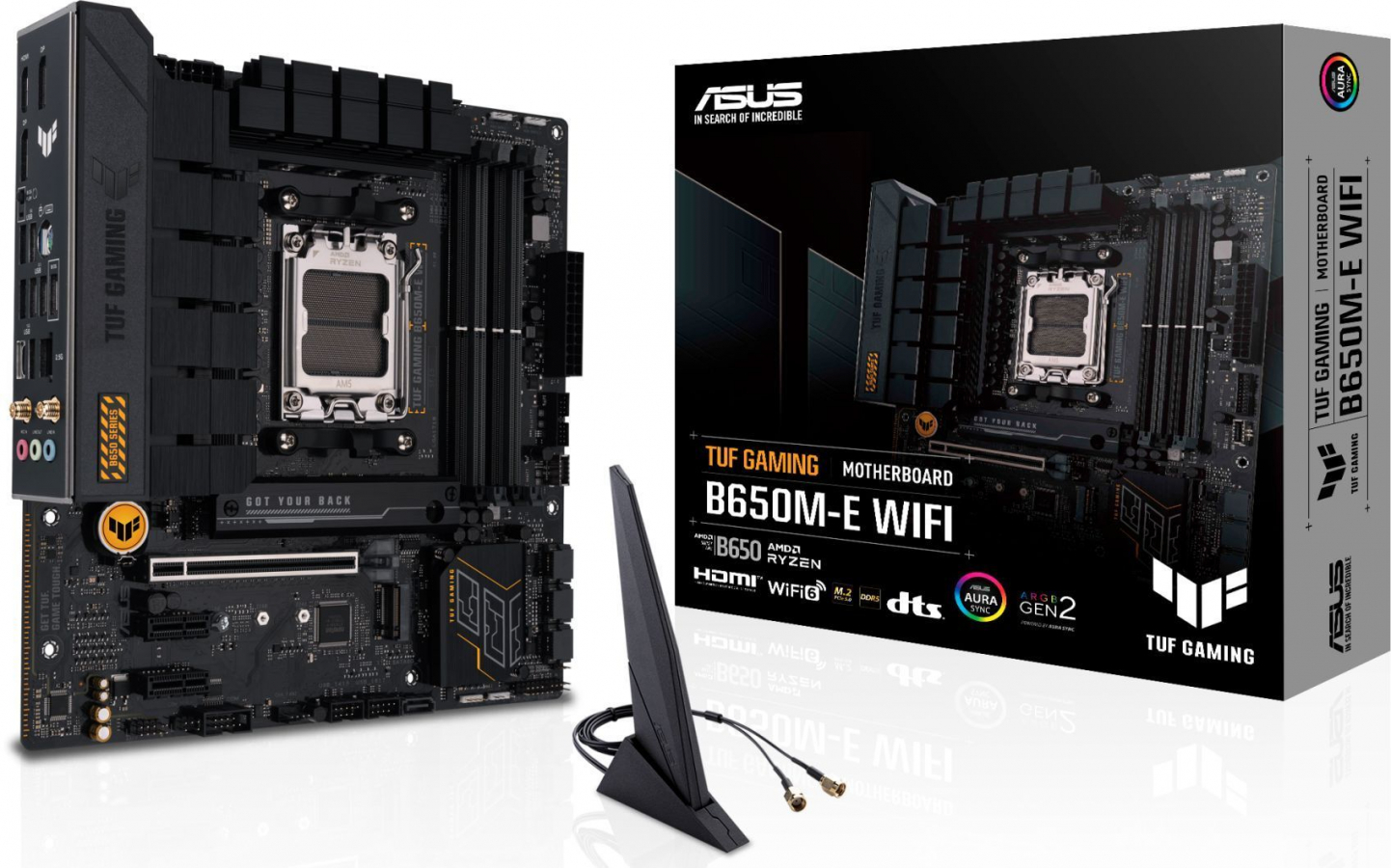

Mātesplate Asus Tuf Gaming B650M-E WiFi
175.95 €
Ikmēneša maksājums
16.30 €
Kopējā maksājamā summa
195.60 €
Kopējā pārmaksa
19.65 €
GPL:21.95%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.86€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
AMD B650
Plates formfaktors
Micro ATX
Procesora ražotājs
AMD
Ligzda
AM5
DDR tips
DDR5
Atmiņas sloti
4
M.2 Pieslēgumi
2
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
AMD B650
Plates formfaktors
Micro ATX
PROCESORS
Procesora ražotājs
AMD
Ligzda
AM5
Procesoru tipi/arhitektūras
AMD Ryzen 7000 Series/ 8000 Series Desktop Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR5
DDR ātrums
DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800
Atmiņas sloti
4
Max atmiņas apjoms
192GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
Realtek 2.5Gb Ethernet
TUF LANGuard
WiFi
Ir
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
2
Iekšējie pieslēgumi
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
Ārējie pieslēgumi
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A +
1 x USB Type-C®)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
GARANTIJA
Garantija
2 gadi
