Pamatplates
BD86392

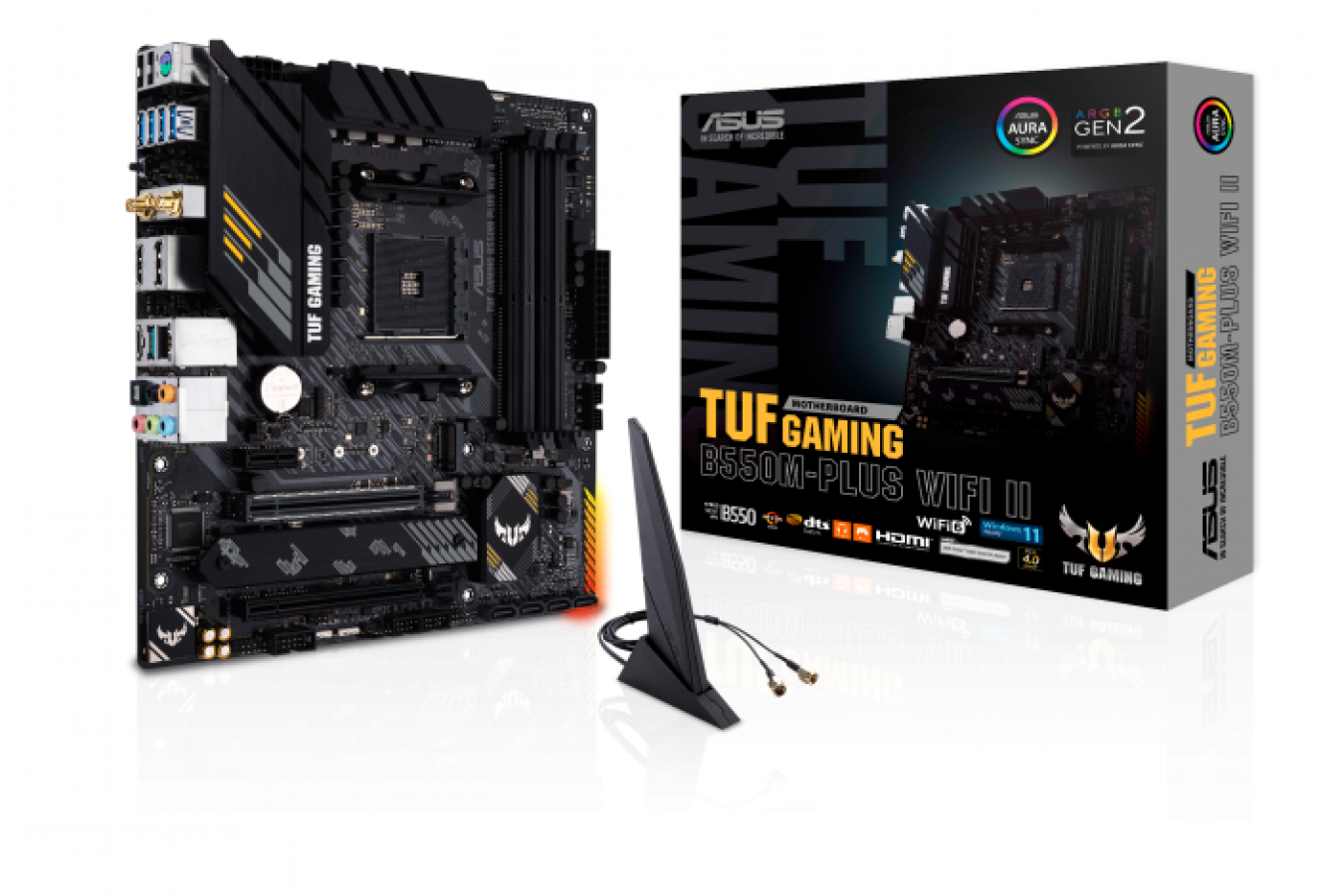

Asus TUF GAMING B550M-PLUS WIFI II
134.95 €
Ikmēneša maksājums
12.50 €
Kopējā maksājamā summa
150.00 €
Kopējā pārmaksa
15.05 €
GPL:21.92%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.66€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Preces galvenie parametri
Mikroshēmu tips | chipset
AMD B550
Plates formfaktors
mATX
Procesora ražotājs
AMD
Ligzda
AM4
DDR tips
DDR4
Atmiņas sloti
4
M.2 Pieslēgumi
2
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
AMD B550
Plates formfaktors
mATX
PROCESORS
Procesora ražotājs
AMD
Ligzda
AM4
Procesoru tipi/arhitektūras
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
OPERATĪVĀ ATMIŅA
DDR tips
DDR4
DDR ātrums
3200MHz (4866 MHz OC)
Atmiņas sloti
4
Max atmiņas apjoms
128 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
LAN
Realtek 2.5Gb Ethernet port
TUF LANGuard
WiFi
Ir
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
2
Iekšējie pieslēgumi
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Ārējie pieslēgumi
2 x USB 3.2 Gen 2 ports (1 x Type-A +
1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
GARANTIJA
Garantija
2 gadi
