Preces galvenie parametri
Korpusa tips
Mid Tower (ATX)
Barošanas bloks
Nav
Krāsa
Melna
5.25” sloti
2
3.5” sloti
1
2.5” sloti
Nav
Visi parametri
PAMATPARAMETRI
Korpusa tips
Mid Tower (ATX)
Barošanas bloks
Nav
Krāsa
Melna
Materiāls
SECC
SLOTI
5.25” sloti
2
3.5” sloti
1
2.5” sloti
Nav
PIESLĒGUMI PRIEKŠĒJAM PANELIM
Audio ieeja
Ir
Audio izeja
Ir
USB 2.0
Nav
USB 3.0
2
USB 3.2
0
USB Type-C
0
GARANTIJA
Garantija
2 gadi

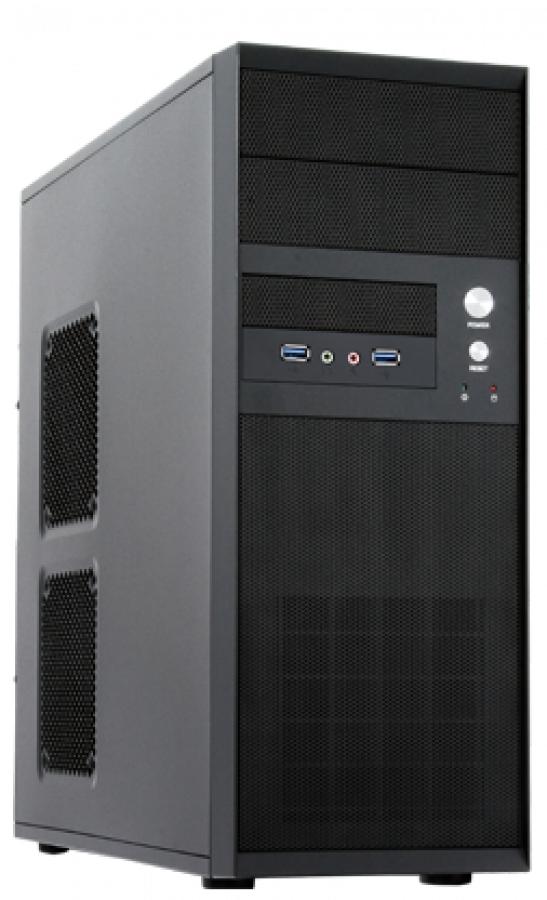

CQ-01B-U3-OP
2x ext. 5,25", 1x ext. 3,5" and 3x int. 3,5" drives can be installed behind this unique front panel. All connectors such as USB 3.0 and Audio are positioned in the front panel and are ergonomically easy-to-access. In addition, the possibility to install 3x 120mm and 2x 80mm fans ensures optimal ventilation resulting in a perfect thermal solution of the chassis.
| Form factor: | mATX, ATX |
| Dimension (DxWxH): | 428mm x 160mm x 410mm (Stand +15mm) |
| Weight: | 4,5 kg w/o PSU |
| Drive Bays ext.: | 2x 5,25" / 1x 3,5" |
| Drive Bays int.: | 3x 3,5" |
| Power Supply: | ATX (not included) |
| Front I/O: | 2x USB3.0 (USB3.1 Gen 1), Mic-in, Audio-out (AZALIA / HD-Audio) |
| Scope of delivery: | Set of screws, thumb screws |
| Material: | SECC, 0,6mm |
| Cooling (opt.): | 2x 80mm on the rear, 1x 120mm on the front, 2x 120mm left side panel |
| CPU cooler height (max.): | ~ 120mm |
| VGA card lenght (max.): | ~ 250mm |
| Warranty: | 24 Month |
