Motherboards
BD123657

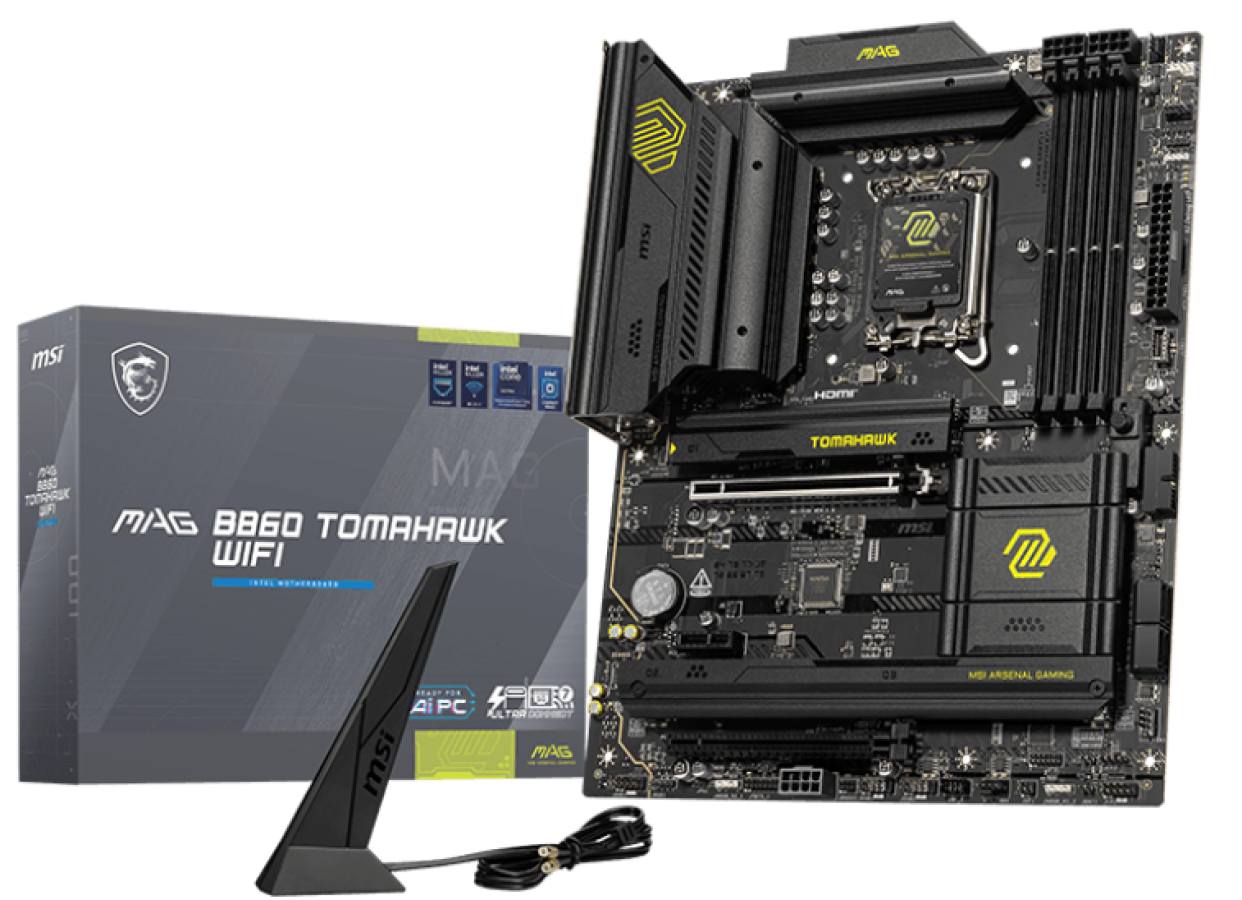

Motherboard MSI MAG B860 TOMAHAWK WIFI
199.95 €
Ikmēneša maksājums
18.52 €
Kopējā maksājamā summa
222.24 €
Kopējā pārmaksa
22.29 €
GPL:21.91%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.98€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Product main parameters
Chipset
Intel B860
Form factor
ATX
Processor manufacturer
Intel
Socket
LGA 1851
DDR type
DDR5
Number of slots
4
M.2 Connections
3
All parameters
DETAILS
Chipset
Intel B860
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Intel® Core Ultra Processors (Series 2)
RAM
DDR type
DDR5
DDR speed
6400 (OC) MT/s / 6400
4800 (JEDEC) MT/s
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
Intel® Killer E5000 5Gbps LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
3
Internal connections
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x OC dashboard connector(JDASH1)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
External connections
Clear CMOS Button
DisplayPort
USB 2.0 (Flash BIOS Port)
5G LAN
USB 10Gbps Type-A
Audio Connectors
Flash BIOS Button
Thunderbolt™ 4 40Gbps (Type-C)
HDMI™
USB 2.0
USB 10Gbps Type-A
USB 10Gbps Type-C
Wi-Fi / Bluetooth
S/PDIF-OUT
WARRANTY
Product warranty, years
2 years
