Motherboards
BD125869

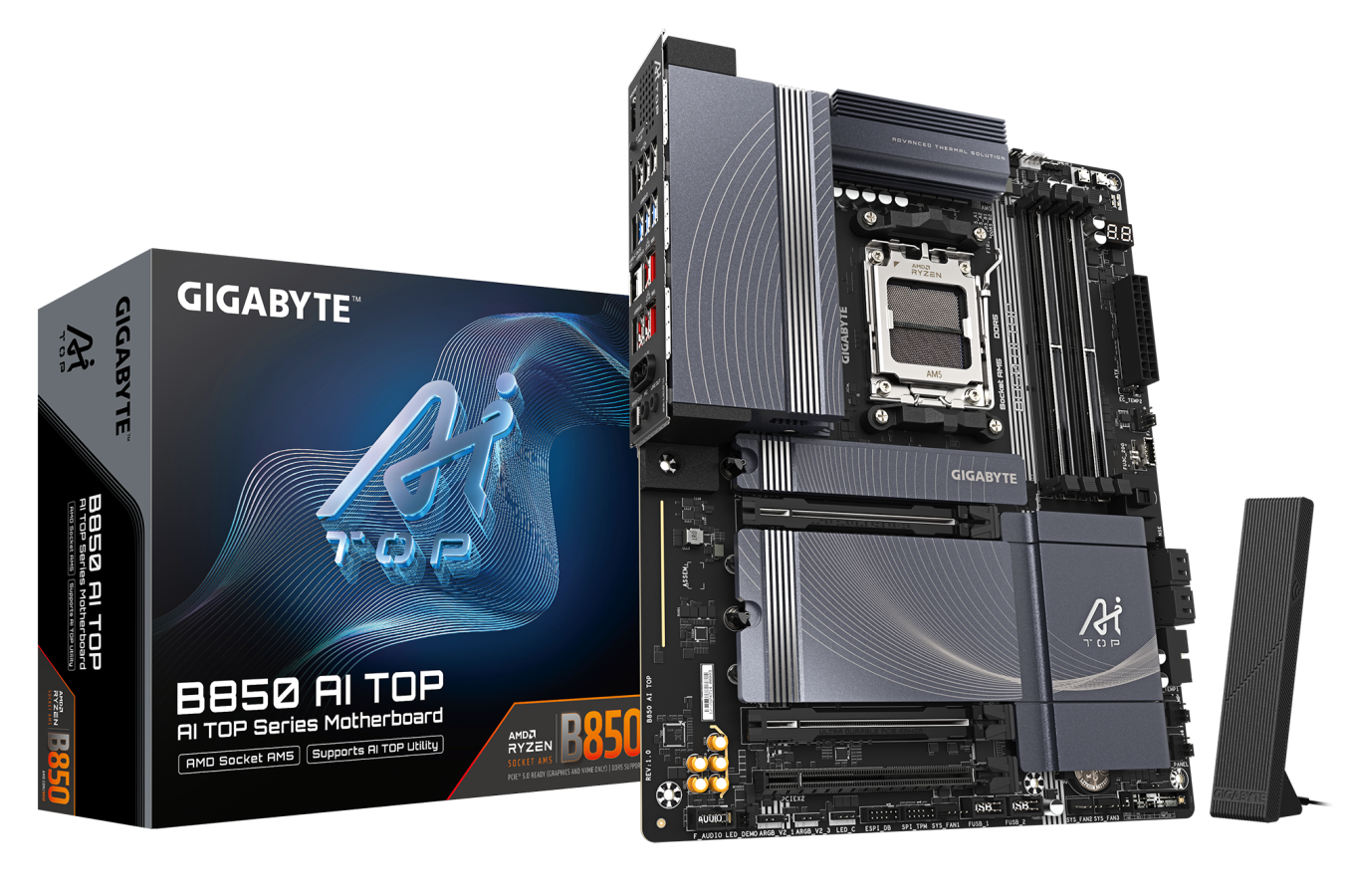

Basic Plate Gigabyte B850 AI Top
433.95 €
Ikmēneša maksājums
40.21 €
Kopējā maksājamā summa
482.52 €
Kopējā pārmaksa
48.57 €
GPL:22.00%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:2.13€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Product main parameters
Chipset
AMD B850
Form factor
ATX
Processor manufacturer
AMD
Socket
AM5
DDR type
DDR5
Number of slots
4
M.2 Connections
3
All parameters
DETAILS
Chipset
AMD B850
Form factor
ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM5
Processor type
AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
RAM
DDR type
DDR5
DDR speed
DDR5 8600(OC)/ 8400(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
3
Internal connections
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
External connections
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port (Note 1)
1 x USB Type-C® port (Note 2) (DisplayPort (Note 1))
3 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
2 x audio jacks
WARRANTY
Product warranty, years
2 years
