Motherboards
BD104663

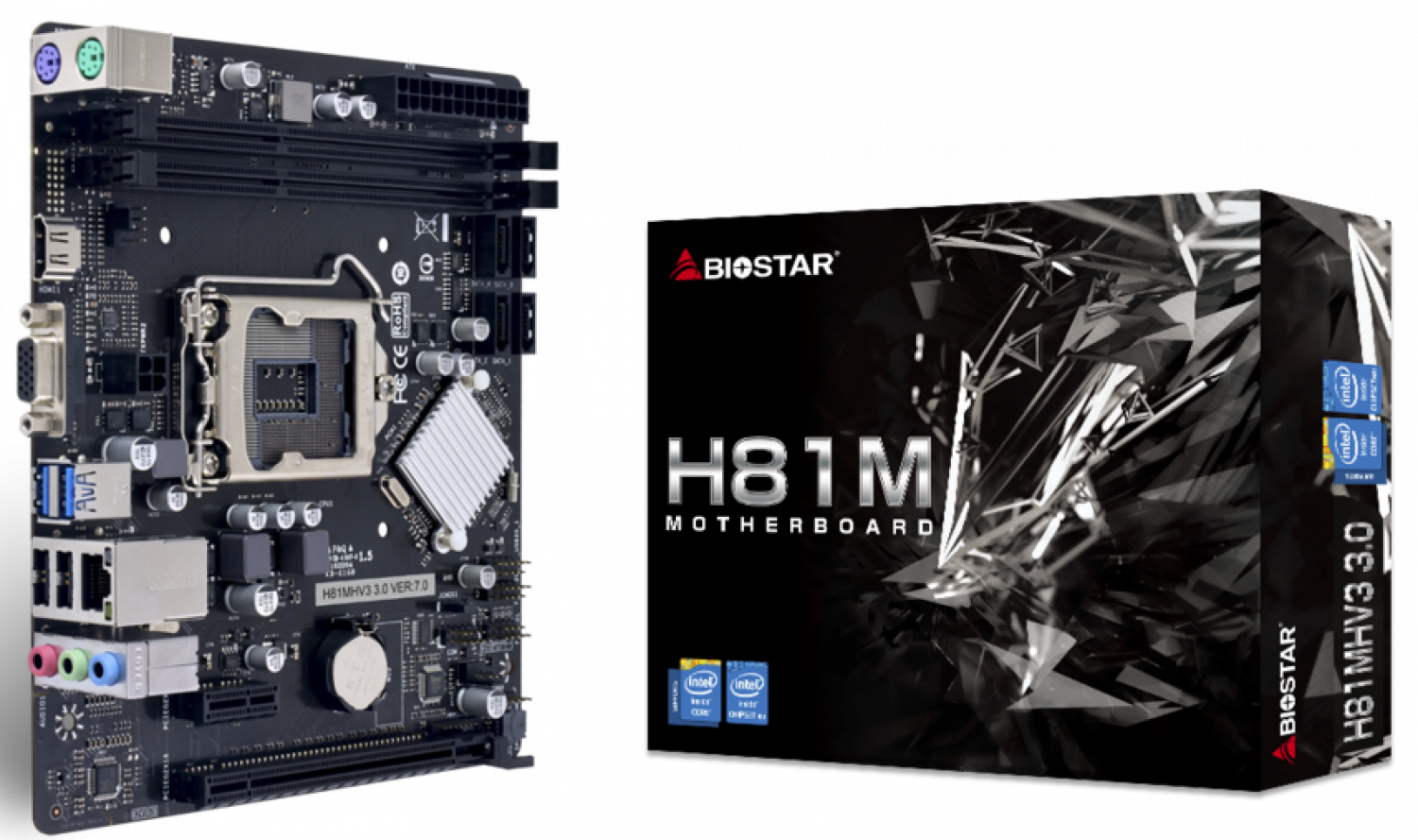

Motherboard Biostar H81MHV3 3.0
62.95 €
Product main parameters
Chipset
Intel H81
Form factor
Micro ATX
Processor manufacturer
Intel
Socket
LGA 1150
DDR type
DDR3
Number of slots
2
M.2 Connections
No
All parameters
DETAILS
Chipset
Intel H81
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1150
Processor type
Intel Core™ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1150 package
RAM
DDR type
DDR3
DDR speed
1066/ 1333/ 1600
Number of slots
2
Max memory size
16 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
LAN
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
No
Internal connections
2 x SATA II (3Gb/s)
2 x SATA III (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
External connections
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
WARRANTY
Product warranty, years
2 years
