Motherboards
BD102258

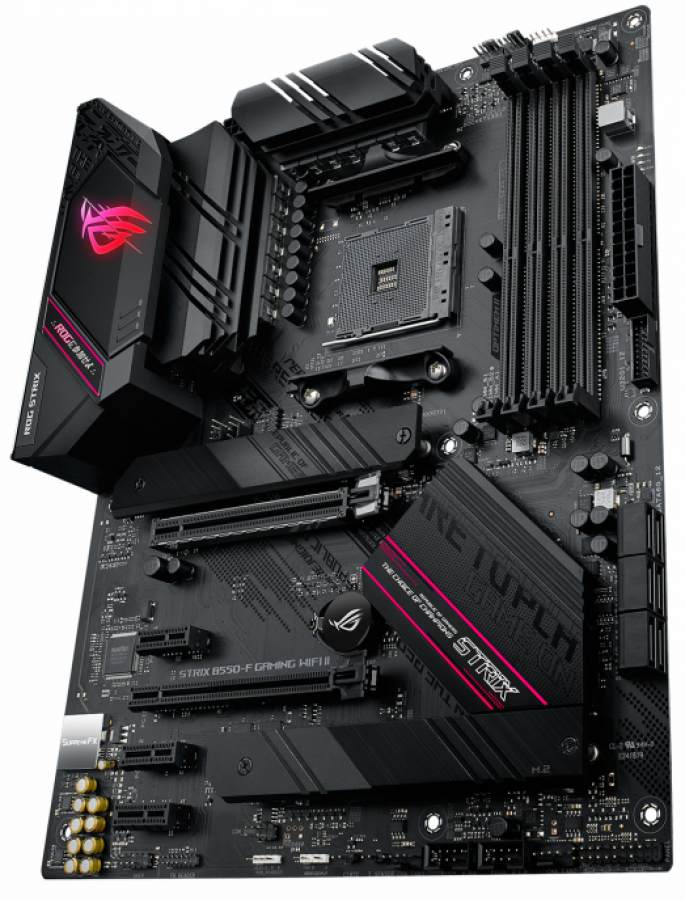

Motherboard Asus ROG STRIX B550-F GAMING WIFI II
158.95 €
Ikmēneša maksājums
14.73 €
Kopējā maksājamā summa
176.76 €
Kopējā pārmaksa
17.81 €
GPL:22.03%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.78€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Product main parameters
Chipset
AMD B550
Form factor
ATX
Processor manufacturer
AMD
Socket
AM4
DDR type
DDR4
Number of slots
4
M.2 Connections
2
All parameters
DETAILS
Chipset
AMD B550
Form factor
ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM4
Processor type
Ryzen 5000 G-series, Ryzen 3000 series, Ryzen 4000 G-series, Ryzen 5000 series
RAM
DDR type
DDR4
DDR speed
4666 (O.C.), 4800 (O.C.), 4600 (O.C.), 4400 (O.C.), 4266 (O.C.), 4133 (O.C.), 4000 (O.C.), 3866 (O.C.), 3800 (O.C.), 3733 (O.C.), 3600 (O.C.), 3466 (O.C.), 3400 (O.C.), 3200, 2800, 3000, 2666, 2400, 2133, 2933
Number of slots
4
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback*
- SupremeFX Shielding Technology
- Dual OP Amplifiers
- Premium audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
LAN
1 x Intel® 2.5Gb Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
2
Internal connections
Fan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Power related
1 x 24-pin main power connector
1 x 8-pin +12V power connector
1 x 4-pin +12V power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ header
External connections
2 x USB 3.2 Gen 2 ports (1 x Type-A +
1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBackTM button
WARRANTY
Product warranty, years
2 years
