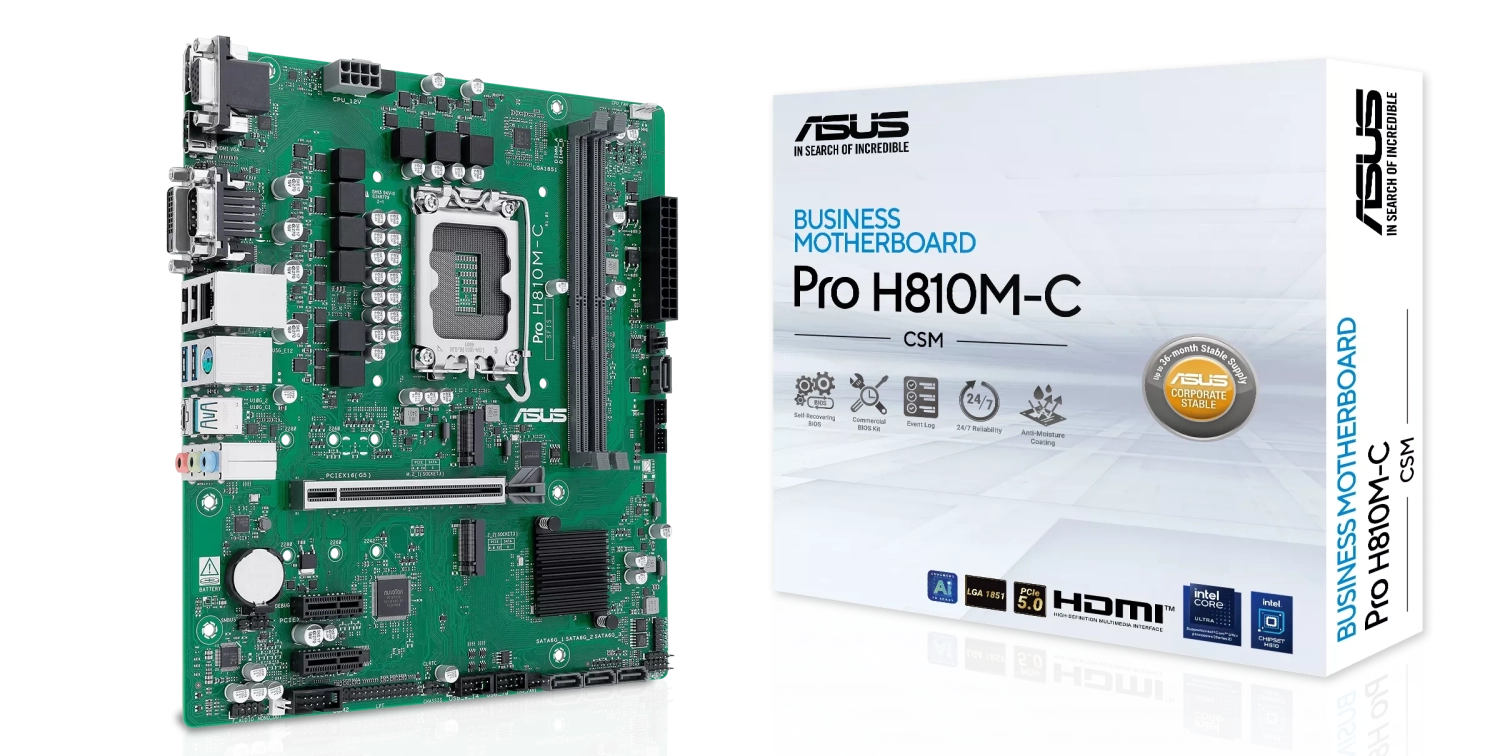

Motherboard Asus Pro H810M-C-CSM
154.95 €
Ikmēneša maksājums
14.36 €
Kopējā maksājamā summa
172.32 €
Kopējā pārmaksa
17.37 €
GPL:22.04%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.76€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Product main parameters
Chipset
Intel H810
Form factor
Micro ATX
Processor manufacturer
Intel
Socket
LGA 1851
DDR type
DDR5
Number of slots
2
M.2 Connections
1
All parameters
DETAILS
Chipset
Intel H810
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Supports Intel® Core™ Ultra Processors (Series 2)
RAM
DDR type
DDR5
DDR speed
Supports up to 6400MT/s
Number of slots
2
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
LAN
1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
* With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
1
Internal connections
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x COM Debug header
1 x LPT header
1 x Mono-Out Audio header (with Amp IC)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
External connections
2 x USB 10Gbps ports (1 x Type-A +
1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x DVI-D port
1 x HDMI™ port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 keyboard/mouse combo port
WARRANTY
Product warranty, years
2 years
