Motherboards
BD105930

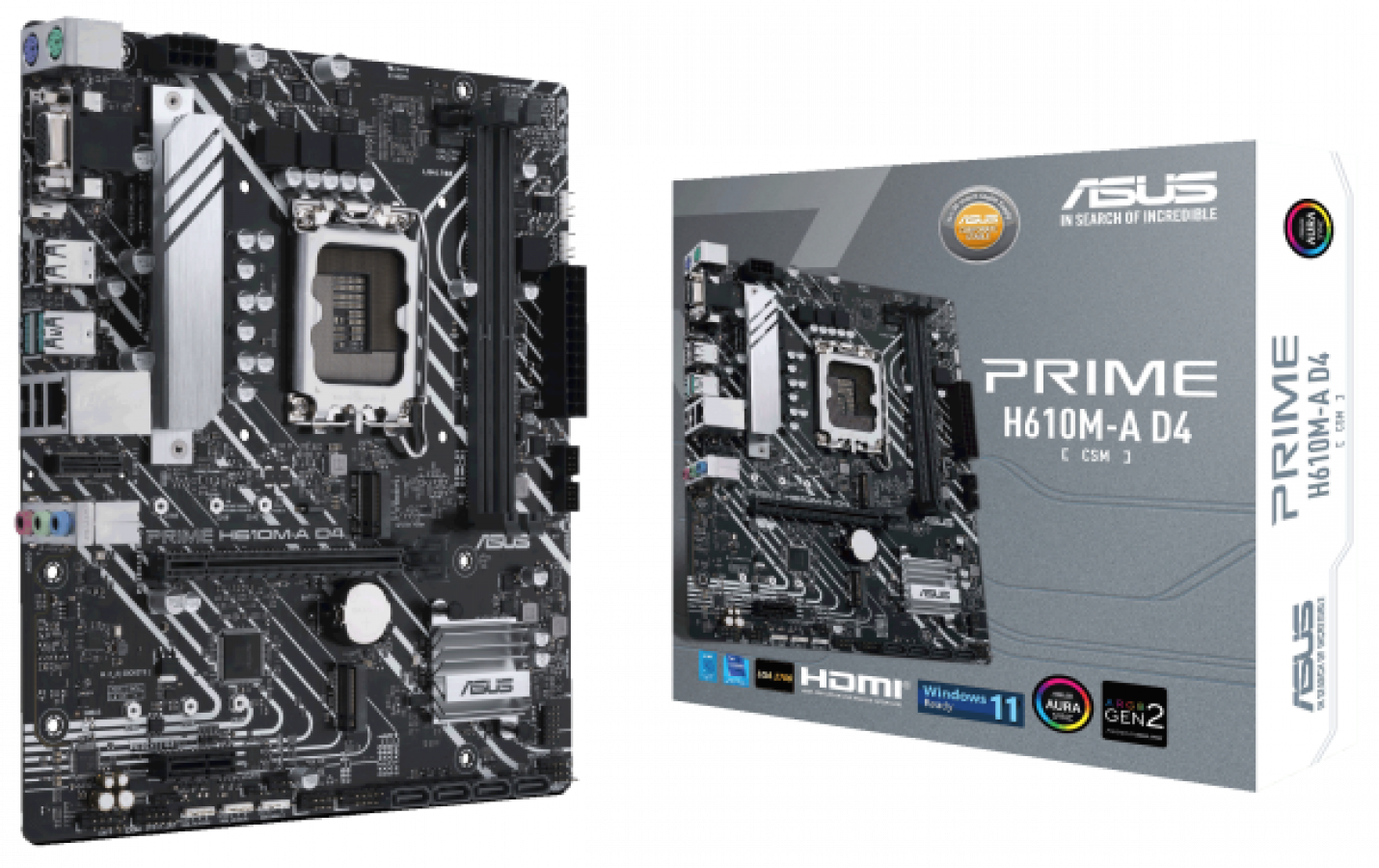

Motherboard Asus PRIME H610M-A D4-CSM
84.95 €
Ikmēneša maksājums
7.87 €
Kopējā maksājamā summa
94.44 €
Kopējā pārmaksa
9.49 €
GPL:21.96%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.42€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Product main parameters
Chipset
Intel H610
Form factor
Micro ATX
Processor manufacturer
Intel
Socket
LGA 1700
DDR type
DDR4
Number of slots
2
M.2 Connections
2
All parameters
DETAILS
Chipset
Intel H610
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1700
Processor type
13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
RAM
DDR type
DDR4
DDR speed
3200/3000/2933/2800/2666/2400/2133
Number of slots
2
Max memory size
64 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN
1 x Intel® 1Gb Ethernet
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
2
Internal connections
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
External connections
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x D-Sub port
1 x V-M.2 slot (Key E)
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
WARRANTY
Product warranty, years
2 years
