Motherboards
BD121354

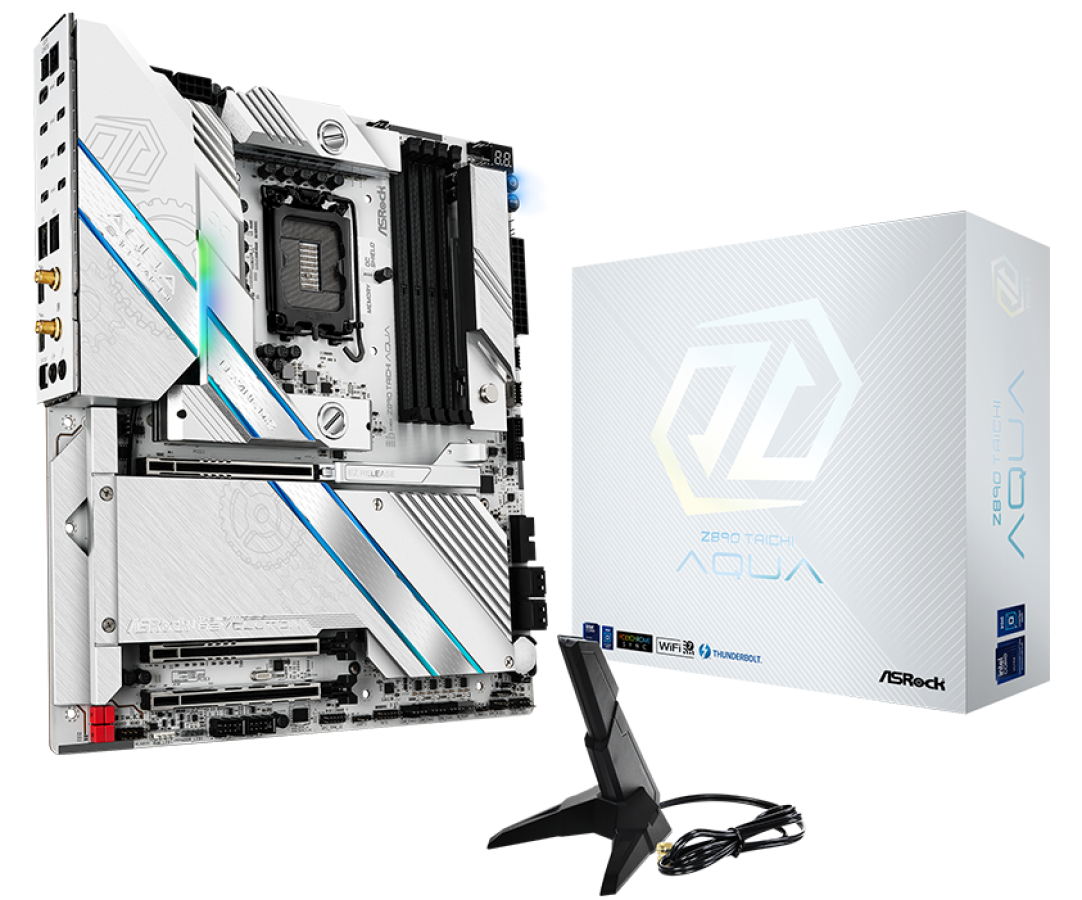

Motherboard ASRock Z890 TAICHI AQUA ATX
848.95 €
Ikmēneša maksājums
78.65 €
Kopējā maksājamā summa
943.80 €
Kopējā pārmaksa
94.85 €
GPL:21.96%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:4.16€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Product main parameters
Chipset
Intel Z890
Form factor
Extended ATX
Processor manufacturer
Intel
Socket
LGA 1851
DDR type
DDR5
Number of slots
4
M.2 Connections
1
All parameters
DETAILS
Chipset
Intel Z890
Form factor
Extended ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
RAM
DDR type
DDR5
DDR speed
9600MHz+(OC)
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- WIMA Audio Capacitors (For Front Outputs)
- ESS SABRE9219 DAC for Front Panel Audio (130dB SNR)
- Individual PCB Layers for R/L Audio Channel
- Impedance Sensing on Rear Out port
- Nahimic Audio
LAN
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)
- Support Wake-On-LAN
- Support PXE
1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
1
Internal connections
-
3 x Thermistor Cable Headers
-
1 x SPI TPM Header
-
1 x Power LED and Speaker Header
-
1 x RGB LED Header*
-
3 x Addressable LED Headers**
-
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
-
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
-
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
-
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
-
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
-
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
-
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
-
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
-
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
-
2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s)
-
1 x Dr. Debug with LED
-
1 x Power Button with LED
-
1 x Reset Button with LED
External connections
-
2 x Antenna Ports
-
1 x Optical SPDIF Out Port
-
2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
-
4 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
-
4 x USB 3.2 Gen1 Type-C Ports (USB32_TC_56 support Ultra USB Power.)
-
2 x RJ-45 LAN Ports
-
1 x Clear CMOS Button
-
1 x BIOS Flashback Button
-
1 x Line Out Jack (Gold Audio Jack)
-
1 x Microphone Input Jack (Gold Audio Jack)
WARRANTY
Product warranty, years
2 years
