Motherboards
BD127530

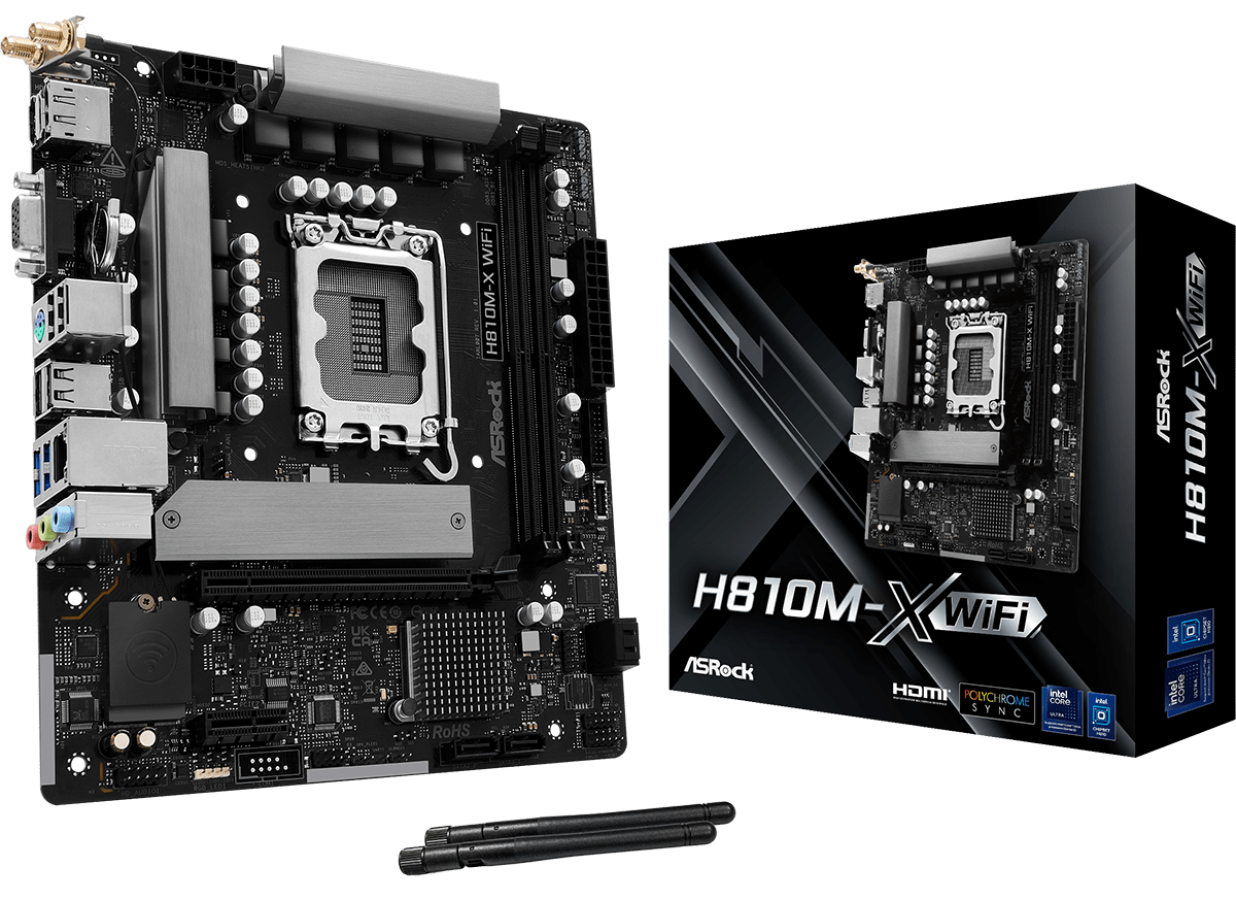

Motherboard Asrock H810M-X WiFi
103.95 €
Ikmēneša maksājums
9.63 €
Kopējā maksājamā summa
115.56 €
Kopējā pārmaksa
11.61 €
GPL:21.95%, Procentu likme:5.90%, Noformēšanas maksa:2.00%, Ikmēneša administrēšanas maksa:0.51€ (0.49%). Līzinga kalkulatora aprēķinam ir informatīva nozīme, tas var atšķirties atkarībā no līzinga kompānijas procentu likmes izmaiņām pie pieprasījuma izskatīšanas. Atgādinām - aizņemies atbildīgi!
Product main parameters
Chipset
Intel H810
Form factor
Micro ATX
Processor manufacturer
Intel
Socket
LGA 1851
DDR type
DDR5
Number of slots
2
M.2 Connections
1
All parameters
DETAILS
Chipset
Intel H810
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
RAM
DDR type
DDR5
DDR speed
Supports DDR5 non-ECC, un-buffered memory up to 6400
Number of slots
2
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- 802.11ac Wi-Fi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 5.0
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
1
Internal connections
-
1 x SPI TPM Header
-
1 x Power LED and Speaker Header
-
1 x RGB LED Header*
-
2 x Addressable LED Headers**
-
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
-
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
-
1 x 24 pin ATX Power Connector
-
1 x 8 pin 12V Power Connector
-
1 x Front Panel Audio Connector
-
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
-
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
-
1 x Front Panel Type C USB 3.2 Gen1 Header
External connections
-
2 x Antenna Mounting Points
-
1 x PS/2 Mouse/Keyboard Port
-
1 x D-Sub Port
-
1 x HDMI Port
-
1 x DisplayPort 1.4
-
2 x USB 3.2 Gen1 Ports
-
4 x USB 2.0 Ports
-
1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
WARRANTY
Product warranty, years
2 years
