Motherboards
BD122593

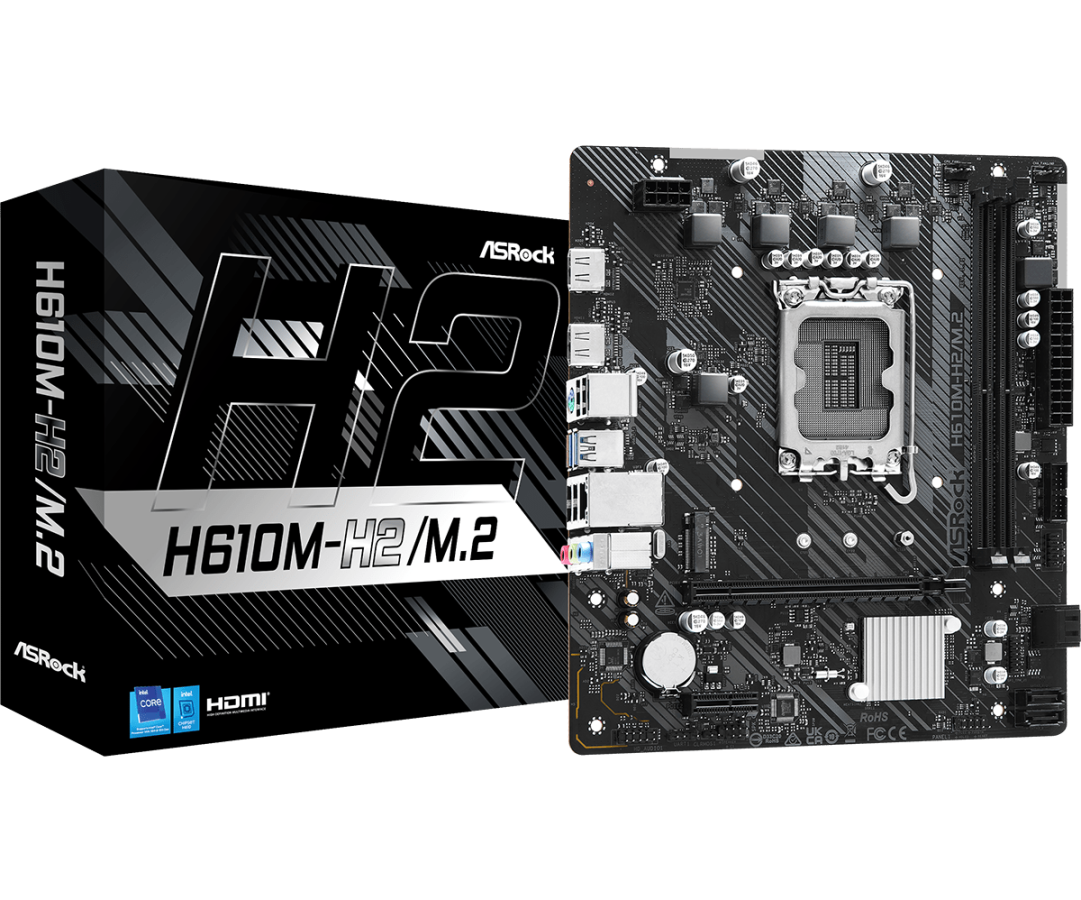

Motherboard ASRock H610M-H2/M.2
61.95 €
Product main parameters
Chipset
Intel H610
Form factor
Micro ATX
Processor manufacturer
Intel
Socket
LGA 1700
DDR type
DDR5
Number of slots
2
M.2 Connections
1
All parameters
DETAILS
Chipset
Intel H610
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1700
Processor type
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
RAM
DDR type
DDR5
DDR speed
DDR4 non-ECC, un-buffered memory up to 3200
Number of slots
2
Max memory size
64 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
1
Internal connections
-
1 x SPI TPM Header
-
1 x Chassis Intrusion and Speaker Header
-
1 x CPU Fan Connector (4-pin)*
-
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
-
1 x 24 pin ATX Power Connector
-
1 x 8 pin 12V Power Connector
-
1 x Front Panel Audio Connector
-
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
-
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
External connections
-
1 x PS/2 Mouse/Keyboard Port
-
2 x HDMI Ports
-
2 x USB 3.2 Gen1 Type-A Ports
-
4 x USB 2.0 Ports
-
1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
WARRANTY
Product warranty, years
2 years
